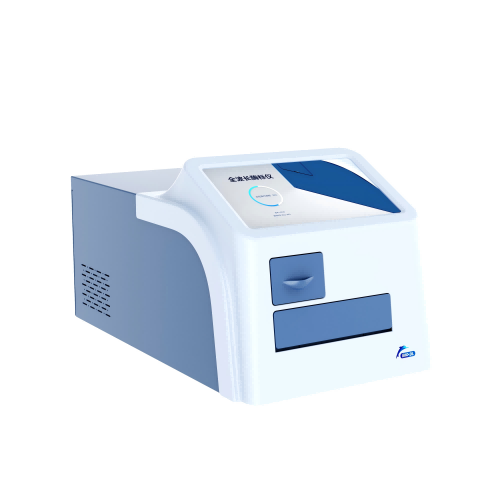

Product Introduction of K3 MAX Full Wavelength and High-Throughput UV-Vis Nucleic Acid Microplate Reader
The K3 Max full wavelength enzyme-linked immunosorbent assay (ELISA) reader is a newly launched microplate spectrophotometer by BIO-DL. K3 Max is a new generation enzyme-linked immunosorbent assay (ELISA) reader carefully designed for the field of life science research,
To provide unparalleled diversified applications for scientific research, biotechnology, and drug development laboratories.
K3 Max is suitable for all applications based on the principle of light absorption, especially performing well in nucleic acid and protein analysis applications. Most suitable for various experiments in multi-user platforms, such as
Endpoint detection, dynamic detection, spectral scanning, etc., with unique dynamic spectral scanning capabilities.
Characteristic of K3 MAX Full Wavelength and High-Throughput UV-Vis Nucleic Acid Microplate Reader
Based on the new generation grating, the wavelength can be freely selected between 200nm-800nm.
Compatible with microplates, ultra trace detection plates, and colorimetric cups.
The K3 Plate ultra micro detection plate can be used to achieve quantitative analysis of trace DNA/RNA and proteins. Standard incubation oscillator.
It can achieve endpoint method, kinetics, spectral scanning, and kinetic spectral scanning.
Ultra fast new generation grating, single hole sample full spectrum measurement<10s, 96 hole plate whole plate reading<6s.
Compatible with automation systems.
Equipped with user-friendly and powerful software as standard.
The instrument is equipped with various ready-made programs, including nucleic acid/protein quantification programs.
Support laboratory routine testing projects such as cell proliferation, apoptosis, enzyme kinetics, and GPCR analysis.
Full wavelength arbitrary selection
With the K3 Max full wavelength enzyme-linked immunosorbent assay (ELISA) reader, you can freely switch wavelengths between 200-800nm and various experimental conditions. Unlike filter based enzyme-linked immunosorbent assay (ELISA) instruments, K3Max uses a grating system for wavelength selection, ensuring excellent sensitivity and fast and accurate results through reliable optical design.
Verified reliability and stability
The design of the instrument includes a dual beam optical system, and its internal reference channel ensures stable detection results under any detection conditions. The K3 Max has a self checking function, which automatically performs diagnostic procedures after the instrument is started, checking the position of the light source, grating, detector, and carrier board to ensure the stable and reliable operation of the instrument.
Powerful data analysis and processing software
K3 Max provides various data processing methods, including blank deduction, standard curve creation, quality control, kinetic and spectral analysis, to help you directly obtain the desired analysis results.

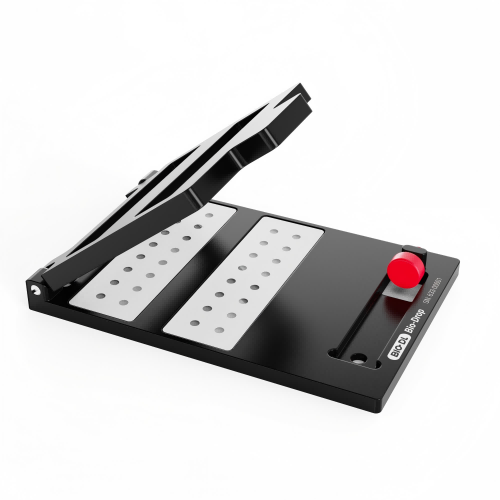

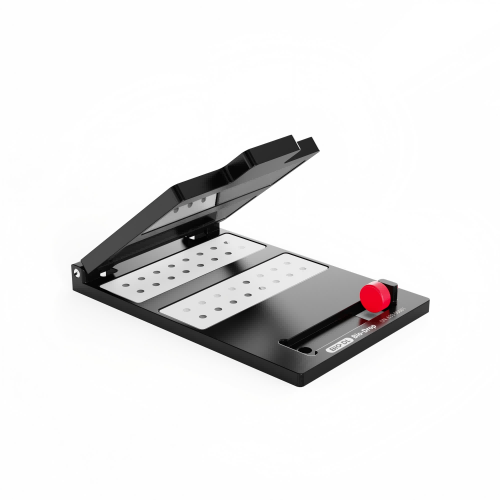

K3 Plate Ultra Trace Detection Plate
Help you easily complete high-throughput quantification of trace nucleic acid proteins. Measuring 1-32 samples at once only requires 2 μ L, effectively saving precious samples. When measuring continuously, simply wipe off the previous batch of samples with a tissue.
Application area of K3 MAX Full Wavelength and High-Throughput UV-Vis Nucleic Acid Microplate Reader
Life science research: used for DNA/RNA quantitative analysis, protein concentration determination, enzyme activity detection, cell proliferation and toxicity analysis, cell apoptosis detection, receptor binding experiments, etc.
Clinical diagnosis: Pathogen antibodies, antigens, tumor markers, hormones, etc. can be detected in biological samples such as blood and urine in clinical laboratories to assist in the diagnosis and treatment monitoring of diseases.
Drug development: suitable for drug screening, drug activity evaluation, drug metabolism research, drug toxicity testing, etc., helping researchers quickly screen out drug compounds with potential activity.
Food safety testing: It can detect harmful substances such as pesticide residues, veterinary drug residues, toxins, allergens, etc. in food to ensure food safety.
Environmental monitoring: used to detect heavy metal ions, organic pollutants, microorganisms, etc. in environmental water samples, evaluate environmental quality, and provide data support for environmental protection and governance.
Technical parameter of of K3 MAX Full Wavelength and High-Throughput UV-Vis Nucleic Acid Microplate Reader
| Wave length range | 200-800nm |
| Wavelength resolution | 1nm |
| Wavelength accuracy | 2nm |
| Wavelength repeatability | 0.2nm |
| Bandwidth | <2.5nm |
| Reading range | 0-3Abs |
| Linear range @ 450nm | 0-2.5Abs, 2% |
| Accuracy @ 450nm | 1.0%+ 0.003 Abs |
| Color cup specifications | Height: 8.0mm |
| Detection speed | 96 well plate: fast mode 6s; Precision mode: 27s; 384 well plate: fast mode for 10s Precision mode: 92s |
| Spectral scanning speed | 200-800nm, 1nm Step: 10s |
| Incubation oscillation | Standard configuration, temperature control range+2°C to 45°C |
| Liquid heating time | 96 well plate (200ul/hole):< 55min，25°C-37°C |
| Connection port | 1 square port USB for connecting to a computer; 1 regular USB, used to connect USB flash drive/wireless network card |
