BIO-DL has been successively building close cooperation relations with some famous companies including Thermo Fisher. We have continuously provided higher quality and more cost-effective products for the users in the world and therefore gained a good reputation.

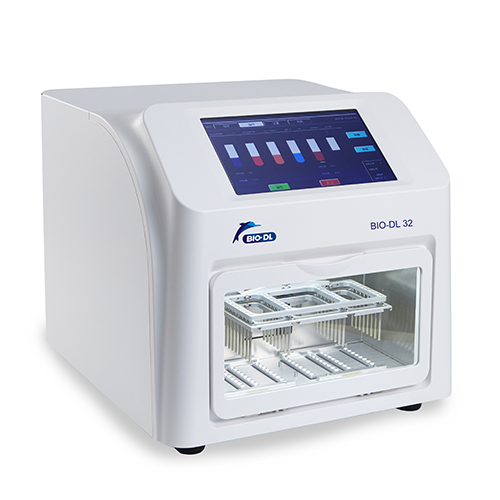

Product Introduction of Laboratory Equipment 32 Throughput Fully Automatic DNA Rna Nucleic Acid Extractor
The magnetic bead method is used to enrich and purify the nucleic acids of different biological samples. The machine runs automatically, has a stable structure and high purification efficiency. The ultraviolet disinfection lamp and multi-selected temperature control design can guarantee the experimental results in all directions, which is perfect for disease control, blood transfusion safety, food environmental monitoring and other research fields.
Product features of Laboratory Equipment 32 Throughput Fully Automatic DNA Rna Nucleic Acid Extractor
Fully automatic and high efficiency
This machine can automatically extract nucleic acid from up to 32 samples within 1hour and the yield is high.
Friendly human-computer interaction
High-definition 10-inch LCD touch screen, built-in user and engineer dual interface, convenient for users to customize parameters.
More stable structure
The accuracy and speed of mechanical movement is controlled well by the synergistic effect of the leadscrew and the synchronous belt.
More functional
The UV lamp inside ensures no pollution in the operation space. The high quality temperature control module achieves fast and accurate temperature control and the heating mode can be switched between single and double plate.
Working principle of Laboratory Equipment 32 Throughput Fully Automatic DNA Rna Nucleic Acid Extractor
In the lysis buffer, the cells are disrupted and the nucleic acid is released into the buffer.
Add magnetic beads to the buffer and mix thoroughly to bind the nucleic acid to the magnetic beads.
Wash the surface of the magnetic beads to remove unwanted impurities including protein, nucleic acid shards or salt to the solution.
Transfer the magnetic beads to the elution buffer and mix well. The nucleic acid falls off the surface of the magnetic beads and dissolves into the elution buffer
Remove the magnetic beads from the buffer and recover the nucleic acid solution.
Application area of Laboratory Equipment 32 Throughput Fully Automatic DNA Rna Nucleic Acid Extractor
The BIO-DL32 nucleic acid extractor can be widely used in fields such as genomics, disease control and medical care, food safety, forensic identification, blood transfusion safety, animal husbandry and molecular research. For example, it can extract nucleic acid from various samples such as nasal swabs, saliva, whole blood, serum, environmental samples, secretions, feces, animal tissues, plant tissues, bacteria, fungi, viruses, plasmids, etc., with stable results.
Technical parameter of Laboratory Equipment 32 Throughput Fully Automatic DNA Rna Nucleic Acid Extractor
| Processing volume | 20μL~1000μL |
| Maximum samplethroughput | 2*96 deep well plate with 1-32 samples |
| Magnetic beadrecovery rate | >95% |
| Heating temperature | Room temperature -100°C, Single-well system temperature precision: ±1°C, temperature difference between each wells:+1°C |
| Operating environment temperature | 5°C~40°C |
| Operating humidity | ≤80% |
| Shake and mix | Fast, medium and slow speed can be adjusted to meet different needs, stepless speed adjustment, level can be set ex-warehouse. |
| Applicable reagent types | Magnetic Method |
| Operation interface | 10inch LCD touch screen |
| Difference between extraction wells | CV<3% |
| Sterilization method | UV |
| Set interface | Switchable interface for user and engineer |
| Instrument interface | USB |
| Dimensions | 430mm*420mm*385mm |
| Gross weight | 26kg |
| Input voltage | 100-240V, 50/60HZ |
Packaging & shipping of Laboratory Equipment 32 Throughput Fully Automatic DNA Rna Nucleic Acid Extractor
Our Factory
Our Team
Our Client
FAQ
Q: How about quality of the goods?
A: All the running products comply with CE standards.
Independent quality inspection team, conducting multiple inspections and random inspections from parts supply to product dispatch.
Q: Is OEM service available.
A: All of the running products are available for OEM customization, including logo and package.
