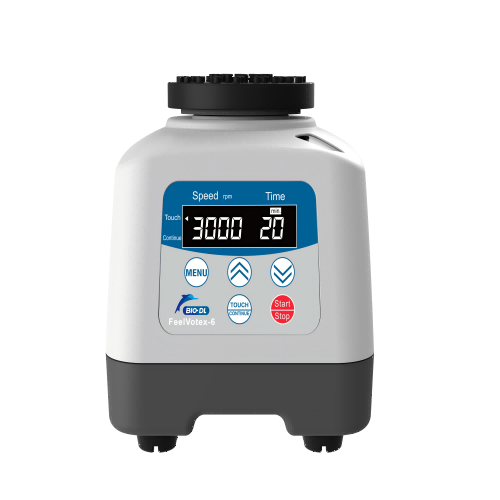

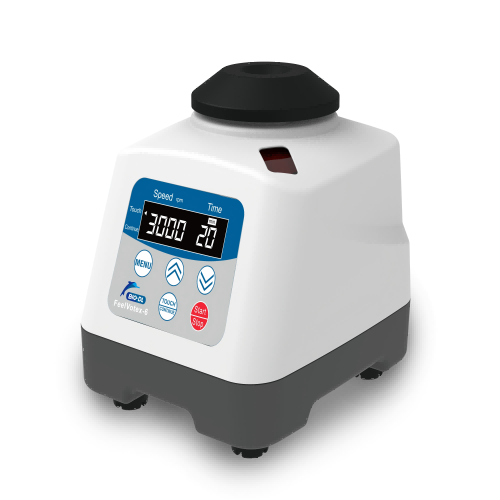

Feel Votex-6 Vortex Mixer

Our core business encompasses the full lifecycle of laboratory scientific instruments and consumables, including liquid handling systems, sample extraction and preparation solutions, and analytical testing equipment.

Product Description

Product Introduction

Shanghai BIO-DL Science Instrument Co., Ltd (BIO-DL) , established in 2013 and headquartered in Caohejing Industrial Park, Songjiang District, Shanghai, spans over 3,000 square meters of office and production facilities. As a high-tech enterprise specializing in life sciences, we integrate R&D, manufacturing, sales, and technical services with a globally extensive marketing and service network.



Our core business encompasses the full lifecycle of laboratory scientific instruments and consumables, including liquid handling systems, sample extraction and preparation solutions, and analytical testing equipment. Through continuous technological innovation, rigorous quality management, and reliable performance, our products have earned the trust of research institutions, medical facilities, and industrial clients worldwide.



Backed by a professional technical service team and global service network, BIO-DL is committed to delivering customized laboratory solutions. Looking ahead, we will continue to center on the "BIO-DL" brand, deepen our presence in life sciences, and drive innovation in global research and related industries by upgrading technologies and services to meet diverse customer needs.



Adopting advanced design concepts and manufacturing technology, the appearance is simple and beautiful, the structure is firm, with high versatility, simple operation and other advantages, to ensure that it can quickly mix liquid, liquid solid.powder and other substances.



Product Features

Reliability

The intelligent analysis and processing platform can sensitively respond to the requirements of various modes. And the product is applied fast processing chipset and electronic sensing technology, which can easily realize intelligent control of speed, time and operation mode.



Drive ability

Permanent magnet DC motors are not prone to heat, and have over-temperature protection characteristics to ensure that they can still work for a longtime under high-speed mixing, The carbon brush design is simple and compact, reducing operational resistance, more powerful, and reducing noise.



Functional

Two safety operation modes 'Step' and 'Continuous', easy to switch.Time function with positive and countdown timer makes the experiment more convenient and accurate.



Efficiency

Mix any liquid or powder required in the shortest time.



Stability

The perfect optimized design of the machine structure makes it have enough counterweight and balanced operation, which provides a stable working platform for various oscillation mixing.



Technical Parameters

Input Power AC100-250V/50/60Hz
Output Power 20W
Drive Method DC24V permanent magnet drive/direct drive
Control Method PWM stepless frequency conversion speed regulation
Operation Mode Step/Continuous
Maximum Load 1.0Kg
Speed Range 0-3000r/min.
Oscillation circumference
Circumference Diameter 4.5mm
Speed Function/Display LCD
Time Function/ Display Digital timing 1s-999min.Countdown,step count up/high brightness LCD
Weight [kg] 3.5kg
Noise at maximum speed ≤45dB(A)
Fastest acceleration time ≤3s
Fastest deceleration time ≤3s
Allowed Temperature Relative Humidity 5-40°C/80%
Protection Level lp21
Testing Standards EN 61010-1.EN 61010-2-020.EN 61326-1.EN 61010-3-2/A2



Order Information

Product Number Model Configuration Information Note
5A00101B Feel Votex-6 Host

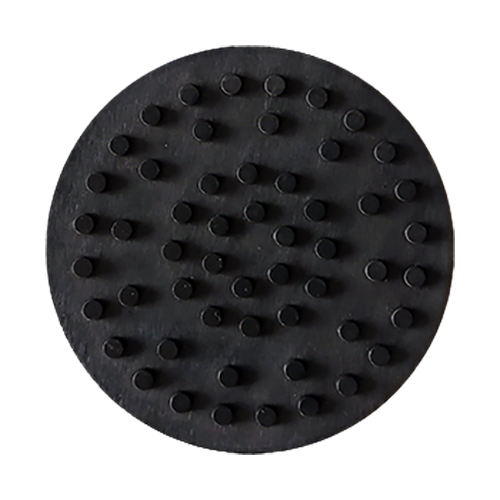

5A00101B-1 Feel Votex-6-1 Adapter Used to place test tubes and small containers with a diameter not exceeding50mm. it uses a trough structure to prevent the container from slipping outside during work. Default
5A00101B-2 Feel Votex-6-2 Adapter Used to place flask containers with a diameter not exceeding 85mm, or to mix multiple test tubes together. Default

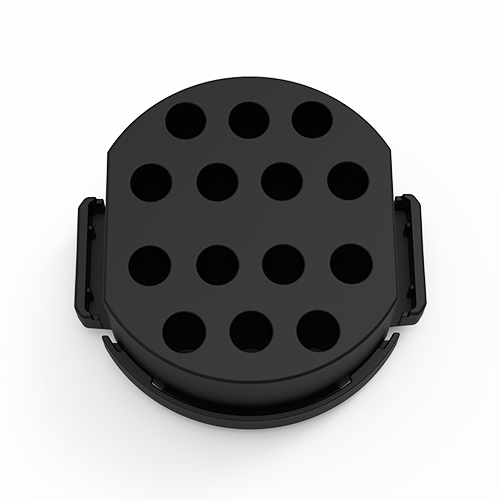

5A00101B-3 Feel Votex-6-3 Adapter Oscillation diameter of 10 mm and a number of 14 holes tubes Default



Packaging & shipping



Lab Pipette Dispenser Continuous Step Mate Stepper Pipette  Lab Pipette Dispenser Continuous Step Mate Stepper Pipette



Our Factory

Lab Pipette Dispenser Continuous Step Mate Stepper Pipette



Lab Pipette Dispenser Continuous Step Mate Stepper Pipette  Lab Pipette Dispenser Continuous Step Mate Stepper Pipette



Lab Pipette Dispenser Continuous Step Mate Stepper Pipette



Our Team

Lab Pipette Dispenser Continuous Step Mate Stepper Pipette



Lab Pipette Dispenser Continuous Step Mate Stepper Pipette

Our Client

Lab Pipette Dispenser Continuous Step Mate Stepper Pipette



Lab Pipette Dispenser Continuous Step Mate Stepper Pipette



Lab Pipette Dispenser Continuous Step Mate Stepper Pipette



FAQ

Q: How about quality of the goods?

A: All the running products comply with CE standards.

Independent quality inspection team, conducting multiple inspections and random inspections from parts supply to product dispatch.



Q: Is OEM service available.

A: All of the running products are available for OEM customization, including logo and package.



Q:How to clean the mixer?

A: Daily cleaning: Wipe the device surface with a damp cloth to remove sample residues;

Deep cleaning: Disassemble fixtures, wash with neutral detergent, and air-dry; avoid liquid entering the motor or control panel.



Q: What should I do if the device makes loud noise or vibrates violently during operation?

A: Check if the device is level and place a non-slip mat under it;

Ensure fixtures and containers are securely installed to avoid looseness;

Unusual noise may indicate bearing wear—contact after-sales service for inspection.
