The vortex mixer is manufactured with the design concept of pressing circular eccentric rotation and oscillation to generate vortex. It has the advantages of simple, smooth and artistic appearance, compact and firm structure with low gravity center and easy operation.
Product Introduction
Shanghai BIO-DL Science Instrument Co., Ltd (BIO-DL) was officially established in Shanghai, China in 2013, and is a high-tech enterprise specializing in the production and manufacturing of experimental instruments. Since its establishment, we have always adhered to the principle of "precision manufacturing, quality first", and are committed to providing high-quality, high-precision instruments and equipment and comprehensive solutions for global scientific research, industry, medical and other fields.
The vortex mixer is manufactured with the design concept of pressing circular eccentric rotation and oscillation to generate vortex. It has the advantages of simple, smooth and artistic appearance, compact and firm structure with low gravity center and easy operation. The constant rotation speed ensures that it can quickly mix samples.
Product Features
The body is equipped with a power breathing light, then the user can check the status of the instrument at anytime;
Small size and large amplitude;
The oscillating gasket is made of wear-resistant silicone material, which has a longer service life;
Zinc alloy one-piece molding base, low gravity center, stable operation without displacement during use;
Battery pack can be externally installed to meet the needs of on-site temporary inspection outside the laboratory;
The maximum diameter of the oscillating container is 45mm, which can be used for multi-standard test tubes,centrifuge tubes, EP tubes, etc., and sample mixing can be convenient and rapid.

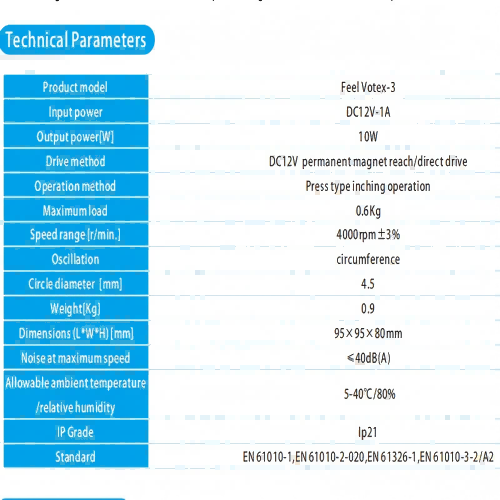

Technical Parameters
| Input Power | DC12V-1A |
| Output Power | 10W |
| Drive Method | DC12V permanent magnet drive/direct drive |
| Control Method | PWM stepless frequency conversion speed regulation |
| Operation Mode | Press type inching operation |
| Maximum Load | 0.6Kg |
| Speed Range | 4000rpm±3% |
| Oscillation | circumference |
| Circumference Diameter | 4.5mm |
| Weight [kg] | 0.9kg |
| Noise at maximum speed | ≤40dB(A) |
| Allowed Temperature Relative Humidity | 5-40°C/80% |
| Protection Level | lp21 |
| Testing Standards | EN 61010-1.EN 61010-2-020, EN 61326-1, EN 61010-3-2/A2 |
Order Information
| ltem lD | Product name | Product model |
| 5A00101B | Vortex Mixer | Feel Votex-3 |
Packaging & shipping
Our Factory
Our Team
Our Client
FAQ
Q: How about quality of the goods?
A: All the running products comply with CE standards.
Independent quality inspection team, conducting multiple inspections and random inspections from parts supply to product dispatch.
Q: Is OEM service available.
A: All of the running products are available for OEM customization, including logo and package.
