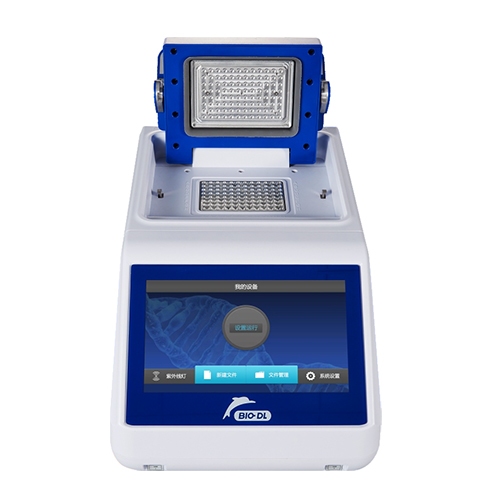

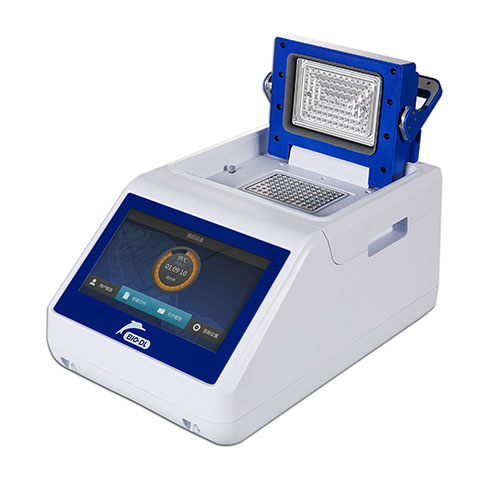

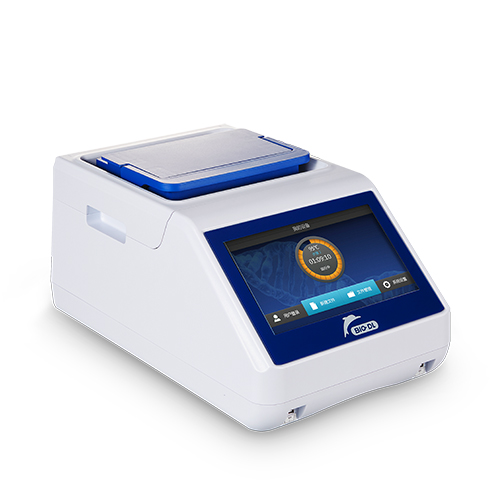

Product Introduction of 96T PCR Thermal Cycler for Gene Amplification
Gene amplifier is a high-precision and high-efficiency biotechnology instrument used for amplifying DNA or RNA molecules.
Working principle of 96T PCR Thermal Cycler for Gene Amplification
The principle of polymerase chain reaction (PCR): Using a DNA molecule to be amplified as a template and a pair of complementary oligonucleotide fragments as primers, under the action of DNA polymerase, it extends along the template chain according to a semi preserved replication mechanism until new DNA synthesis is completed. By continuously repeating the cycle of high-temperature denaturation (causing DNA double strand to unwind), low-temperature annealing (primer template binding), and temperature appropriate extension (DNA polymerase synthesizing new strands), the target gene can be rapidly amplified.
Basic structure of 96T PCR Thermal Cycler for Gene Amplification
Thermal cycle system: It is the core part of the gene amplification instrument, mainly composed of a heating module, a cooling module, and a temperature control system. It can quickly and accurately achieve different temperature conditions required for PCR reaction, and quickly switch between different temperatures to ensure the smooth progress of PCR reaction.
Control system: generally composed of a microprocessor, a display screen, and operation buttons. The microprocessor serves as the control core and can accurately control thermal cycle parameters, fluorescence detection parameters, etc. The display screen and operation buttons are used for user input instructions and display information such as the working status, parameters, and experimental results of the instrument.
Sample placement system: used to place sample carriers such as PCR reaction tubes or microplates. It is usually compatible with various specifications of sample containers, such as 0.2ml thin-walled PCR centrifuge tubes, 96 well plates, etc., and can ensure that the sample is in full contact with the heating module or cooling module during the thermal cycling process to achieve uniform temperature control.
Characteristic of 96T PCR Thermal Cycler for Gene Amplification
Efficiency: It can amplify extremely small amounts of target DNA or RNA millions or even tens of millions of times in a short period of time, greatly improving experimental efficiency and the ability to detect and analyze genes.
Strong specificity: By designing specific primers, specific amplification can be performed on target genes, avoiding the generation of non-specific products and ensuring the accuracy of experimental results.
High sensitivity: It can detect extremely small amounts of genes in the sample, even DNA or RNA with very low initial content can be effectively amplified and detected.
High degree of automation: Equipped with an automated control system, it can automatically adjust parameters, monitor experimental processes, analyze data, and output results, reducing the influence of human factors and improving the repeatability and reliability of experiments.
Application area of 96T PCR Thermal Cycler for Gene Amplification
Clinical diagnosis: nucleic acid used to detect pathogens, such as hepatitis virus, AIDS virus, tuberculosis bacillus, etc., to assist in the diagnosis and efficacy evaluation of infectious diseases; It can also be used for tumor biomarker and tumor gene detection, diagnosis of genetic diseases, etc.
Life science research: plays an important role in gene expression analysis, transcriptional regulation research, gene function verification, genetic evolution research, etc., helping researchers gain a deeper understanding of gene structure and function, and explore the essence of life phenomena.
Food safety testing: It can detect food microorganisms, food allergens, genetically modified ingredients, and dairy companies such as Escherichia coli, ensuring food safety.
Animal disease detection: The detection of animal diseases such as avian influenza, Newcastle disease, foot-and-mouth disease, swine fever, etc. is of great significance for the prevention and control of animal diseases and the development of animal husbandry.
Environmental monitoring: used to detect microorganisms, pathogens, genetically modified organisms, etc. in the environment, evaluate environmental quality and ecological safety.
Packaging & shipping of 96T PCR Thermal Cycler for Gene Amplification
Our Factory
Our Team
Our Client
FAQ
Q: How about quality of the goods?
A: All the running products comply with CE standards.
Independent quality inspection team, conducting multiple inspections and random inspections from parts supply to product dispatch.
Q: Is OEM service available.
A: All of the running products are available for OEM customization, including logo and package.
