If you've ever struggled with high background noise, poor reproducibility, or inconsistent data in your ELISA or cell-based assays, the culprit might not be your protocol or reagents—it might be your washer. And at the very core of every washer lies its most critical component: the wash head. The choice between a traditional dual-tip design and an advanced coaxial flow technology can be the difference between questionable data and impeccable results.
In this article, we dive deep into the engineering behind washer head designs, exploring the advantages that make coaxial technology the gold standard for high-performance labs.
The Technical Showdown: Coaxial vs. Dual-Tip Design
Traditional washers use a dual-tip design, where separate probes for dispensing and aspirating are positioned side-by-side. This sequential process (dispense, then move, then aspirate) can lead to splashing, aerosol generation, and higher residual volumes, increasing the risk of cross-contamination.

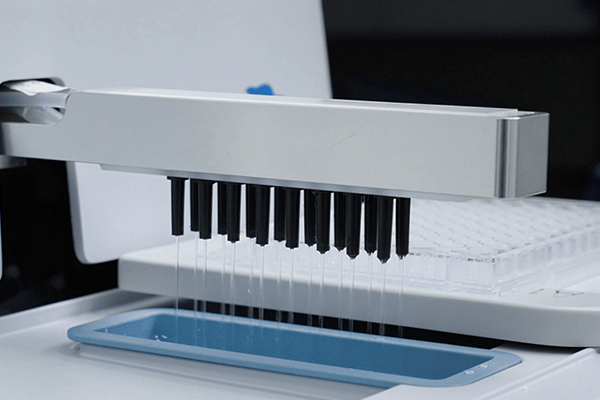

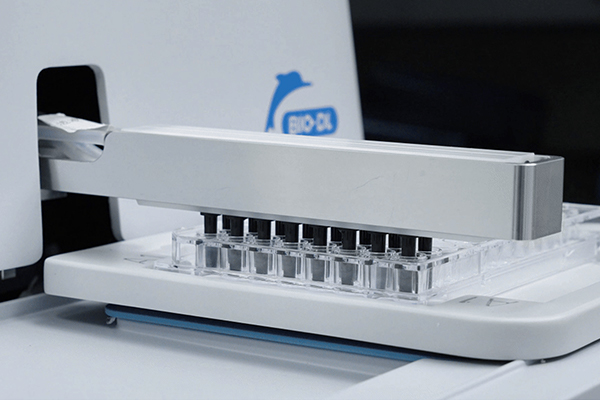

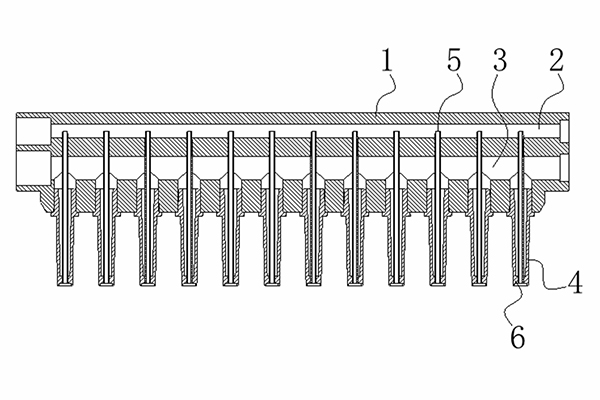

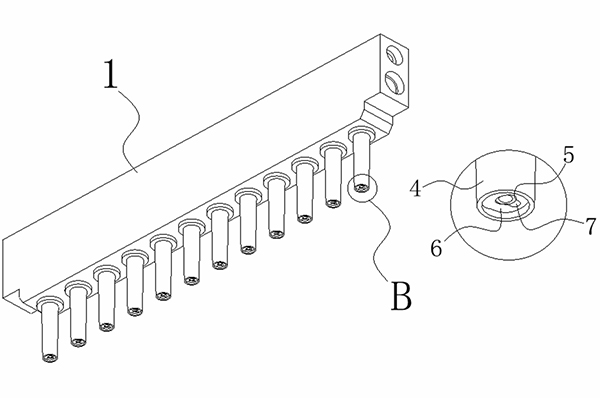

Modern high-performance washers, like the Bio-DL Easywash series, employ a sophisticated coaxial nozzle design. This features two needles in one: an inner needle for dispensing buffer surrounded by an outer, concentric sleeve for immediate aspiration.
Key Advantages of Coaxial Nozzle Design:
1. Superior Cleaning Efficiency & minimal Cross-Contamination: Dispensing and aspirating occur simultaneously at the exact same point in the well. This creates a uniform, gentle flow that effectively washes the entire well wall without splashing, virtually eliminating cross-talk between wells.
2. Ultra-Low Residual Volume: The coaxial head can be positioned precisely close to the well bottom. The powerful, immediate suction of the outer sleeve ensures waste is removed instantly, achieving consistently low residual volumes (<2 µL), which is crucial for high-sensitivity assays like CLIA.
3. Unmatched Consistency & reproducibility: Every well is treated identically. This synchronous "jet-and-suck" action ensures each well receives the same rigorous washing process, leading to superior well-to-well and plate-to-plate uniformity in your final data.
Considerations:
This advanced design requires precision engineering, making it a feature of more sophisticated instruments. It emphasizes the need for regular maintenance to prevent clogging, a requirement easily managed with modern washer automation features.
Beyond the Head: Systems Integration for Peak Performance
A precision nozzle is only as good as the system that supports it. True performance is achieved through integrated design:
Dual-Pump System: A dedicated pump for dispensing and a separate, powerful pump for aspiration provide independent control, ensuring consistent flow rates and that mighty suction power needed for minimal residuals.
Suspended Aspiration & Liquid Level Tracking: This feature allows the head to descend until it detects the liquid surface, then aspirate from a precise height above the well bottom without touching it. This prevents well damage, adapts to different liquid volumes, and ensures every drop of waste is removed, every time.

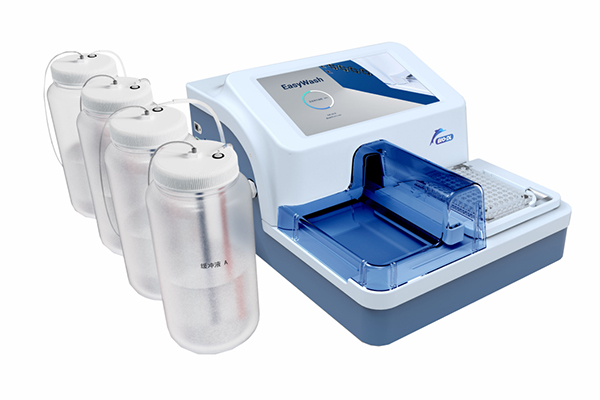

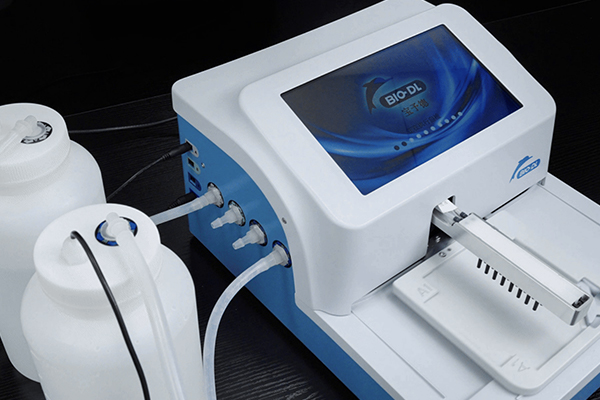

Engineered for Excellence: The Bio-DL Easywash Microplate Washer
At Bio-DL, we don't just adopt advanced technology; we refine it. Our Easywash microplate washer embodies the pinnacle of washing technology, designed for the researcher who will not compromise on data quality.
Advanced Coaxial Flow Head: Experience the unparalleled cleaning performance and contamination-free results of true coaxial core technology.
Powerful Dual-Pump System: Achieve massive suction power for ultra-low residual volumes and reliable dispensing accuracy, even with viscous buffers.
Intuitive 10-inch Color Touchscreen: Command every aspect of your wash protocols with ease. The large, user-friendly interface makes method editing, validation, and operation remarkably simple.
Precision Liquid Level Tracking: Ensures complete liquid recovery from various well types and volumes, guaranteeing uniform results across the entire plate.
Our instruments are built based on decades of expertise in life science instrumentation, designed by engineers who understand the nuances of assay development. The Easywash isn't just a tool; it's your partner in generating reliable, publication-quality data.
Why Trust Bio-DL?
Experience: Our team possesses deep, hands-on experience in diagnostic and research lab workflows. We design solutions for real-world challenges.
Expertise: We are specialists in fluidics and automation engineering for the life sciences. This technical expertise is embedded in every product we create.
Authoritativeness: Bio-DL is a recognized and trusted brand, supplying reliable equipment to labs worldwide. Our technical documentation and support resources are comprehensive and authoritative.
Trustworthiness: We build our reputation on transparency, quality, and unwavering customer support. Our products are designed to be robust, dependable, and backed by a strong service commitment.
Upgrade your lab's foundation. Choose a washer designed to protect your most valuable asset: your data.
>A flawless assay is built on a foundation of impeccable washes. Don't let your hardest work go down the drain.
Ready to Experience the Difference?
Explore the full technical specifications and see how the Bio-DL Easywash can transform your assay reproducibility. [Contact Us Today for a Demo or Quote].
