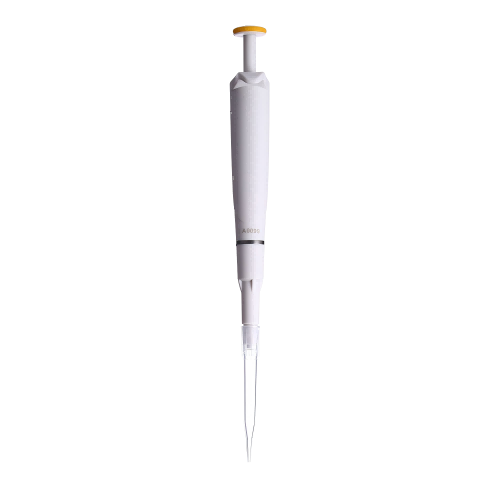

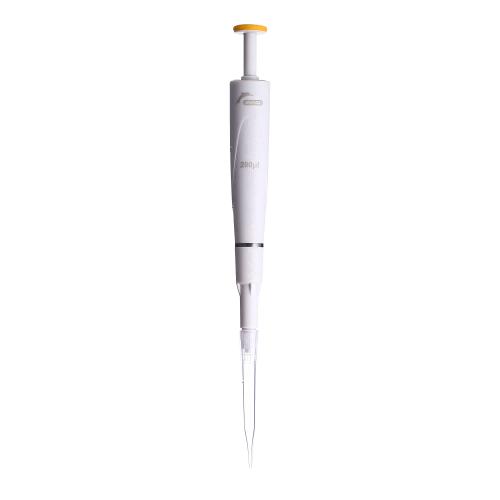

Product Introduction of 5ul-1000ul Mini Fixed Pipette
High precision: It can achieve very high pipetting accuracy within its fixed range.
Easy to operate: There is no complex range adjustment device, just press the operation button to complete the suction and discharge actions, reducing the difficulty of operation and minimizing the risk of errors caused by range adjustment.

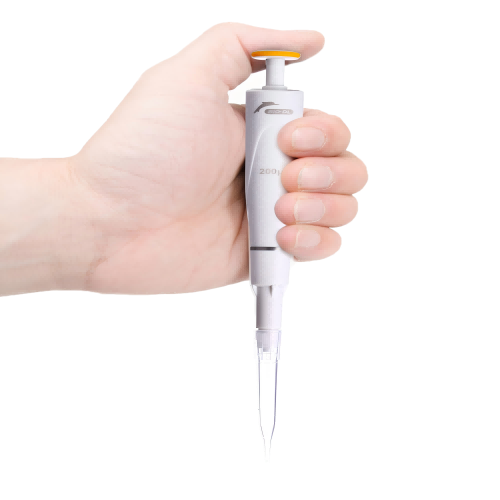

Compact and lightweight: The volume is usually very small, with a length of 13 centimeters and a light weight of only 10g, which is convenient for experimenters to hold and operate for a long time, reducing hand fatigue, and making it easy to use in experimental environments with limited space.
Economical: Compared to adjustable range pipettes, mini fixed range pipettes have a relatively simple structure, lower production costs, and more affordable prices. For some laboratories with limited budgets or scenarios that only require specific volume pipetting operations, they are a cost-effective choice.
Widely applicable: It can be used for the transfer of specific trace liquids in multiple fields such as molecular biology, cell biology, clinical diagnosis, and drug development, such as transferring 5 μ L of primer solution in PCR reactions.
The product specifications are complete and the range can be customized.
Maintenance and upkeep of 5ul-1000ul Mini Fixed Pipette
Regular cleaning: After use, the pipette housing should be wiped with a clean damp cloth in a timely manner to remove surface stains and residual liquid. If liquid enters the interior of the pipette, it should be disassembled and cleaned in a timely manner to avoid corrosion of internal parts.
Proper storage: When not in use, the mini pipette should be placed vertically on a dedicated pipette rack, avoiding flat or inverted placement to prevent liquid from flowing back into the interior of the pipette and damaging components such as the piston.
Calibration and maintenance: Calibrate the mini pipette at regular intervals (usually 6-12 months) to ensure its pipetting accuracy is within the specified range. If inaccurate pipetting or unsmooth operation is found, timely repair or replacement of parts should be carried out.
Product Description of 5ul-1000ul Mini Fixed Pipette
| NO. | Channels | Range | Inaccuracy | Imprecision |
| 72B31211 | 1-ch | 5μl |
±2.5% |
1.50% |
| 72B31221 | 1-ch | 10μl |
±1.2% |
0.80% |
| 72B31231 | 1-ch | 20μl |
±0.9% |
0.60% |
| 72B31241 | 1-ch | 25μl |
±0.6% |
0.50% |
| 72B31251 | 1-ch | 50μl |
±0.50% |
0.30% |
| 72B31351 | 1-ch | 75μl |
±0.50% |
0.30% |
| 72B31261 | 1-ch | 100μl |
±0.50% |
0.30% |
| 72B31271 | 1-ch | 200μl |
±0.40% |
0.20% |
| 72B31341 | 1-ch | 300μl |
±0.40% |
0.20% |
Packaging & shipping of 5ul-1000ul Mini Fixed Pipette
Our Factory
Our Team
Our Client
FAQ
Q: How about quality of the goods?
A: All the running products comply with CE standards.
Independent quality inspection team, conducting multiple inspections and random inspections from parts supply to product dispatch.
Q: Is OEM service available.
A: All of the running products are available for OEM customization, including logo and package.
