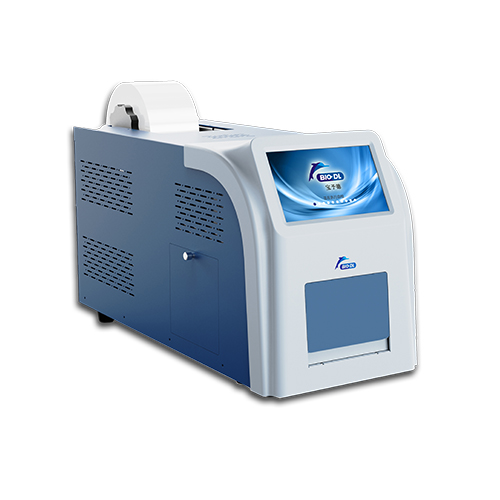

Product Introduction of Automated Roll Heat Sealer
The Automated Roll Heat Sealer enables up to 5,000 perfect seals without manual user intervention, providing a true walk-away system. The main advantage of the Automated Roll Heat Sealer is that it is powered by electric motors, with no requirement for any air supply. This enables the Automated Roll Heat Sealer to generate a reliable and consistent sealing pressure, resulting in superior seal uniformity. In addition, it provides the user the flexibility to use this instrument without the need for an external air supply, enabling ease-of-use as a stand-alone unit on a lab bench or within integrated robotic set-ups. Consistent sealing is achieved through a fixed high sealing pressure and accurate time and temperature controls, ensuring reproducible seal uniformity on the widest range of plates. The high-performance heating block design enables rapid heating with no delay between seals, and provides a uniform temperature across the entire heating block. The Automated Roll Heat Sealer is compatible with a wide range of SBS footprint plates, including all PCR plate formats from 96 to 1536 wells, assay plates, deep well storage plates and microplates. The Automated Roll Heat Sealer can be used with the wide range of sealing materials that BIO-DL offers, including gas permeable seals with no further instrument modificaiton, enabling a wide range of applications.
Unrivalled sealing performance and consistency; 5,000 perfect seals without intervention
SiLA compatible; Easy integration into robotic systems
Powerful electric motor generates consistent sealing pressure for superior sealing uniformity
High-performance heating block design generates uniform temperature across entire heating block.
Features of Automated Roll Heat Sealer
Powerful electric motor drives plate sealing mechanism
SiLA compatible
Compatible with a wide range of plates and seals; 2 positions for different roll sizes
Variable time and temperature controls
Seal cycle time < 15 seconds
High-performance heating block design
Color touch screen with intuitive user interface
Unlimited password protected protocols
Auto standby mode
Optional roll cover
Benefits of Automated Roll Heat Sealer
Reliable and consistent sealing pressure; Superior sealing uniformity; No requirement for any air supply
Easy integration into robotic systems through plug & play
Flexibility with a wide range of consumables including gas permeable seals without instrument modification
Enables optimization of any seal / plate type
Time-saving
Rapid heating, no delay between seals; Uniform temperature across entire heating block, +/- 1 degree edge-to-edge, corner-to-corner
Ease of use, saving time
Save personalization and SOP-set temperatures and times
Energy-saving; prolongs component life
Seal protection for sensitive applications
Instrument reliability
Providing The Perfect Solution For Automated Heat Sealing Plug and Play Robotic Integration
The automated Roll Heat Sealer is compliant with SiLA standards for rapid integration of automated systems. This means it can be “plug and play” connected with other instruments, such as readers, robotic arms and liquid handlers, to give a custom automated system without the need to write expensive custom drivers.
The Automated Roll Heat Sealer is extremely versatile leaving you the freedom to expand and reconfigure your systems such as adding robotic plate handling.
Full communication protocol available — operate the instrument and record sealing conditions for each seal using the RS232 communication port
SiLA compatible — quick and easy integration with other SiLA compliant devices using the SiLA driver
Packaging & shipping of Automated Roll Heat Sealer
Our Factory
Our Team
Our Client
FAQ
Q: How about quality of the goods?
A: All the running products comply with CE standards.
Independent quality inspection team, conducting multiple inspections and random inspections from parts supply to product dispatch.
Q: Is OEM service available.
A: All of the running products are available for OEM customization, including logo and package.
