BIO-DL has been successively building close cooperation relations with some famous companies including Thermo Fisher. We have continuously provided higher quality and more cost-effective products for the users in the world and therefore gained a good reputation.

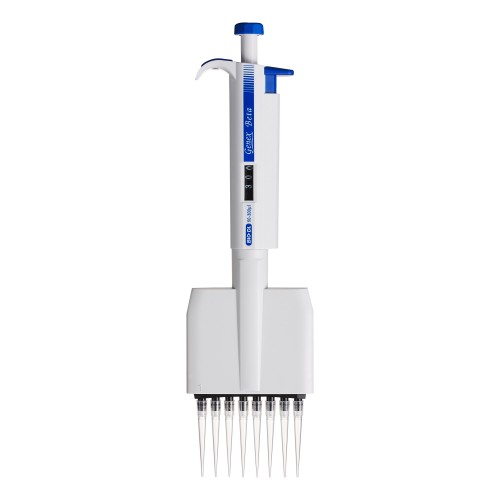

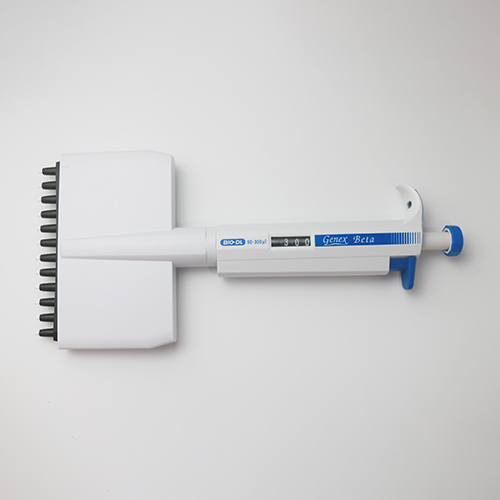

Product Introduction of Genex Multi Channel Adjustable Semi Disinfectant Pipette
Multi channel pipette is a precision pipetting device widely used in laboratories, which can simultaneously perform liquid transfer operations in multiple channels. The working principle of a multi channel pipette is basically similar to that of a single channel pipette, both of which are based on the pressure changes generated by the movement of the piston to achieve the suction and discharge of liquid. In a multi-channel pipette, each channel has an independent piston system. When the operating rod is pressed, the pistons of all channels move upward simultaneously, creating negative pressure inside the suction head, allowing the liquid to be drawn into each suction head; When the operating rod is released or further pushed, the piston moves downward to discharge the liquid inside the suction head. By adjusting the distance of piston movement, the volume of liquid suction and discharge in each channel can be precisely controlled, and the volume adjustment of all channels is synchronized.
Structural details of Genex Multi Channel Adjustable Semi Disinfectant Pipette
Operating rod: Located at the top of the pipette, it is a long rod-shaped structure that allows operators to control the suction and discharge actions of all channels by pressing or pushing the operating rod. The design of the operating rod conforms to ergonomics, making it easy to operate and reducing hand fatigue.
Volume adjustment device: located at the upper part of the pipette, it is a rotary knob that can adjust the pipetting volume of all channels simultaneously. It is equipped with a clear volume scale display screen next to it, which can accurately display the set pipetting volume.
Pipette body: It is the main body of the pipette, made of high-strength, corrosion-resistant plastic or metal materials, and contains multiple independent piston channels inside, each corresponding to a suction head.
Characteristic of Genex Multi Channel Adjustable Semi Disinfectant Pipette
Improve work efficiency: It can simultaneously transfer multiple liquid samples of the same volume, greatly saving time and labor costs, especially suitable for experiments that require processing a large number of samples, such as adding samples to 96 well plates and 384 well plates.
Accuracy and Consistency: By adopting high-precision manufacturing processes and calibration techniques, the accuracy and consistency of liquid volume transfer in each channel can be ensured. The errors between channels are usually controlled within a small range, ensuring the reliability and repeatability of experimental results.
Adjustable: It has a certain range of measurement, and can flexibly adjust the pipetting volume through a volume adjustment device according to experimental needs to meet the requirements of different experiments for liquid volume.
Good compatibility: It can be used with porous suction heads of different specifications and brands, with good compatibility, making it convenient for experimenters to choose the appropriate suction head according to actual situations to meet different experimental needs.
Applicable scenarios of Genex Multi Channel Adjustable Semi Disinfectant Pipette
High throughput screening: In high-throughput screening experiments in fields such as drug development and biotechnology, multi-channel pipettes can quickly and accurately add different compounds, cells, reagents, etc. to 96 well or 384 well plates, greatly improving screening efficiency.
Genetic testing: In genetic testing experiments such as gene chips and PCR reaction system construction, different nucleic acid samples, primers, enzymes, and other reagents need to be added to multiple reaction wells simultaneously. Multi channel pipettes can ensure the accuracy and consistency of sample addition, which helps to improve the accuracy and reliability of genetic testing.
Immunoassay: In enzyme-linked immunosorbent assay (ELISA), a multi-channel pipette can be used to simultaneously add reagents such as antigens, antibodies, and enzyme-linked immunosorbent assay (ELISA) to the microplate, reducing sample addition time and errors, and improving the efficiency and quality of immunoassay.
Cell culture: In cell culture experiments, it is necessary to add cell suspension, culture medium, growth factors, etc. to porous cell culture plates. Multi channel pipettes can quickly and evenly complete the sample addition operation, providing convenience for cell culture.
Product Description of Genex Multi Channel Adjustable Semi Disinfectant Pipette
| NO. | Channels | Range | Measuring Volume | Inaccuracy | Imprecision |
| 72411031 | 8-ch | 0.5-10μl |
0.10μl |
±1.50% ±2.50% ±4.00% |
1.50% 2.50% 4.00% |
| 72411051 | 8-ch | 5-50μl |
0.50μl |
±1.00% ±1.50% ±3.00% |
0.50% 1.00% 2.00% |
| 72411061 | 8-ch | 10-100μl |
1.00μl |
±0.80% ±1.00% ±3.00% |
0.20% 0.40% 1.00% |
| 72411141 | 8-ch | 50-300μl |
5.00μl |
±0.70% ±1.00% ±1.50% |
0.25% 0.50% 0.80% |
| 72411081 | 8-ch | 100-1000μl |
10.00μl |
±0.60% ±0.70% ±2.00% |
0.20% 0.25% 0.70% |
| 72421031 | 8-ch | 0.5-10μl |
0.10μl |
±1.50% ±2.50% ±4.00 % |
1.50% 2.50% 4.00% |
| 72421051 | 8-ch | 5-50μl |
0.50μl |
±1.00% ±1.50% ±3.00% |
0.50% 1.00% 2.00% |
| 72421061 | 8-ch | 10-100μl |
1.00μl |
±0.80% ±1.00% ±3.00% |
0.20% 0.40% 1.00% |
| 72421141 | 8-ch | 50-300μl |
5.00μl |
±0.70% ±1.00% ±1.50% |
0.25% 0.50% 0.80% |

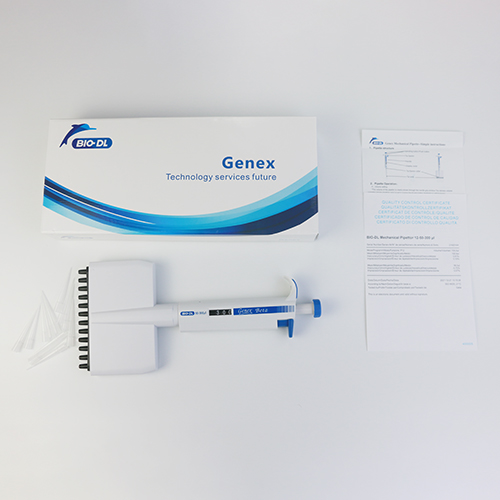

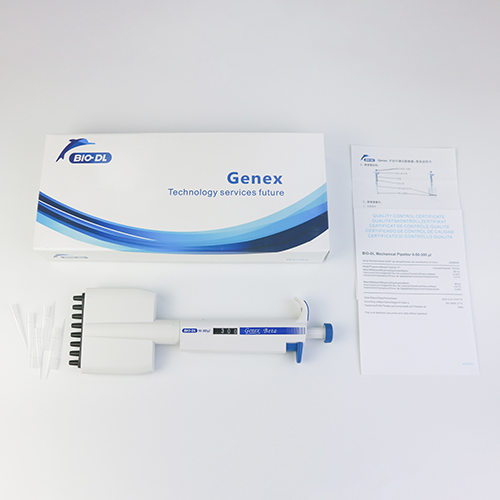

Packaging & shipping of Genex Multi Channel Adjustable Semi Disinfectant Pipette
Our Factory
Our Team
Our Client
FAQ
Q: How about quality of the goods?
A: All the running products comply with CE standards.
Independent quality inspection team, conducting multiple inspections and random inspections from parts supply to product dispatch.
Q: Is OEM service available.
A: All of the running products are available for OEM customization, including logo and package.
